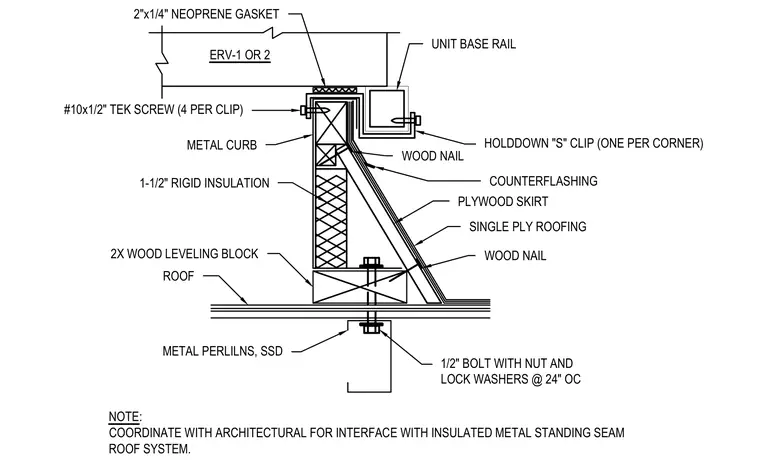

The ERV-1 or 2 unit base rail bears on a 2-inch by 1/4-inch neoprene gasket atop a metal curb. Holddown S-clips are fastened to each corner using four number 10 by 1/2-inch TEK screws per clip, anchoring the unit base rail to the curb. The metal curb incorporates 1-1/2-inch rigid insulation, a plywood skirt with single-ply roofing, and counterflashing. The curb assembly rests on 2x wood leveling blocks and is bolted through to underlying metal purlins using 1/2-inch bolts with nuts and lock washers spaced at 24 inches on center. Coordinate with architectural for the interface with the insulated metal standing seam roof system.
ERV-1 OR 2 UNIT BASE RAIL HOLDDOWN "S" CLIP (ONE PER CORNER) COUNTERFLASHING 2"x1/4" NEOPRENE GASKET METAL CURB 1-1/2" RIGID INSULATION #10x1/2" TEK SCREW (4 PER CLIP) 2X WOOD LEVELING BLOCK ROOF WOOD NAIL PLYWOOD SKIRT SINGLE PLY ROOFING WOOD NAIL METAL PERLILNS, SSD 1/2" BOLT WITH NUT AND LOCK WASHERS @ 24" OC NOTE: COORDINATE WITH ARCHITECTURAL FOR INTERFACE WITH INSULATED METAL STANDING SEAM ROOF SYSTEM.
