Mechanical · M-EHAWX

Condensing Unit Curb Detail and Mounting Plate Elevation

Materials

Concrete Steel Timber / Wood Metal (misc.)Gypsum / Drywall

Elements

Decks Site / Paving Anchors / Embeds Connections / Plates

Connections

Deck Attachment Embed Plate

About this detail

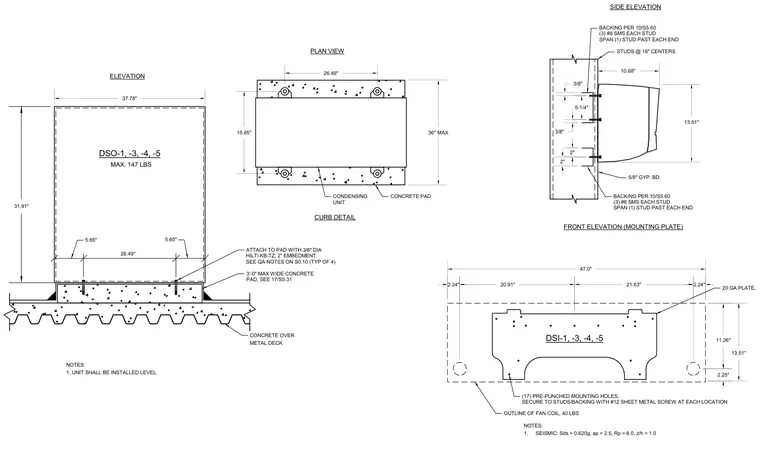

Multiple views for mechanical equipment installations feature a condensing unit on a concrete pad over metal deck attached with three-eighths-inch diameter Hilti KB-TZ anchors with a two-inch embedment. The side and front elevations of the mounting plate detail present a twenty gauge plate secured to steel studs spaced at sixteen inches on center with five-eighths-inch gypsum board, using number eight sheet metal screws at each stud backing and number twelve sheet metal screws through pre-punched mounting holes. Seismic design parameters are noted as Sds equal to zero point six two zero g, ap equal to two point five, Rp equal to six point zero, and z over h equal to one point zero.
