Mechanical · M-EH6EV

Differential Pressure Gauge Installation

Materials

Connections

About this detail

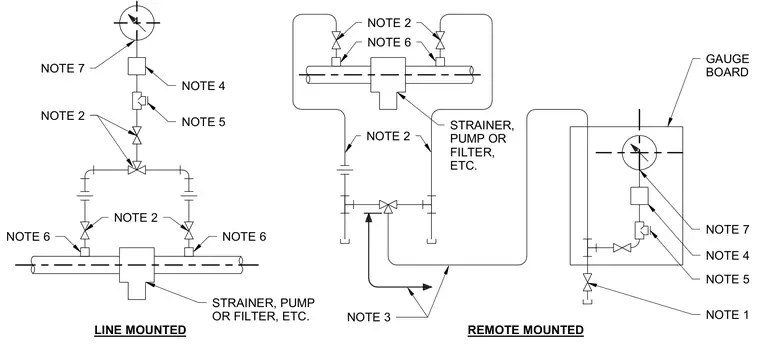

Schematic diagrams illustrate line mounted and remote mounted differential pressure gauge installations for mechanical piping systems. The line mounted configuration connects pressure taps with isolation valves across an inline strainer, pump, or filter. The remote mounted configuration routes pressure sensing lines from the main piping run to a panel-mounted gauge board. Associated components include pressure gauges, test connections, and inline valves.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
