A pipe penetrates a concrete roof slab or metal deck roof through an eight-foot sleeve packed with a minimum of one inch of fire-resistive insulation. A ring clamp secures a twenty gauge galvanized steel storm collar for galvanized pipe or a sixteen gauge steel storm collar for black steel pipe, with the collar welded around the top and sealed. Roofing and flashing are provided by the general contractor, maintaining four inches minimum clearance. A support strap is welded to the pipe where the pipe weight is supported from the roof structure, positioned sixteen inches from the top of the roofing.

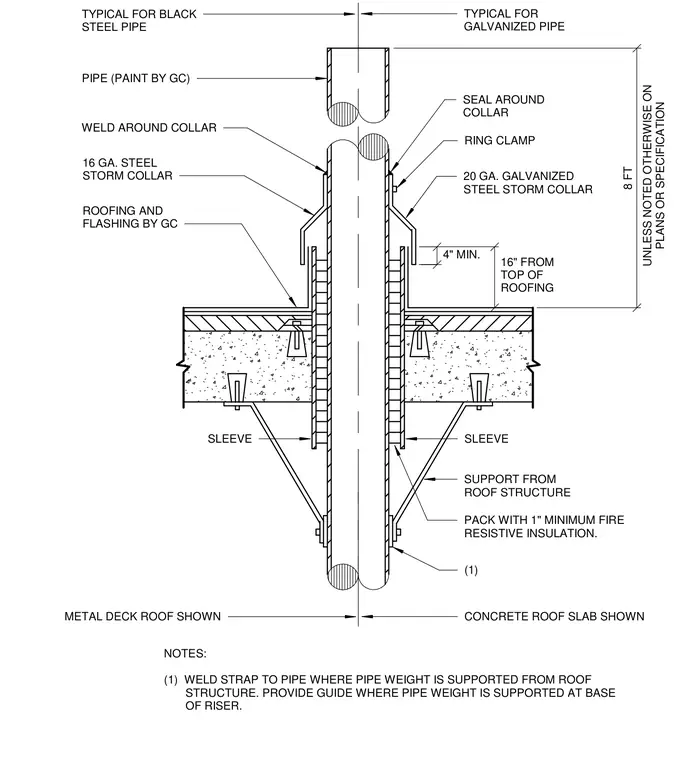

CONCRETE ROOF SLAB SHOWN METAL DECK ROOF SHOWN SLEEVE (1) RING CLAMP 4" MIN. PIPE (PAINT BY GC) WELD AROUND COLLAR NOTES: (1) WELD STRAP TO PIPE WHERE PIPE WEIGHT IS SUPPORTED FROM ROOF STRUCTURE. PROVIDE GUIDE WHERE PIPE WEIGHT IS SUPPORTED AT BASE OF RISER. PACK WITH 1" MINIMUM FIRE RESISTIVE INSULATION. SUPPORT FROM ROOF STRUCTURE 16" FROM TOP OF ROOFING 20 GA. GALVANIZED STEEL STORM COLLAR SEAL AROUND COLLAR TYPICAL FOR GALVANIZED PIPE UNLESS NOTED OTHERWISE ON PLANS OR SPECIFICATION 16 GA. STEEL STORM COLLAR TYPICAL FOR BLACK STEEL PIPE ROOFING AND FLASHING BY GC 8 FT SLEEVE
