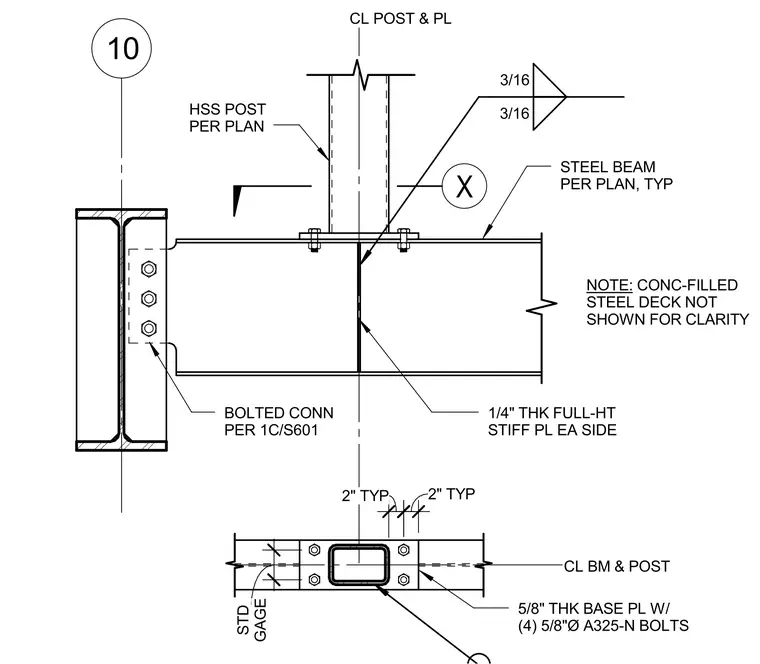

An HSS post bears on a steel wide flange beam sized per plan, with concrete-filled steel deck omitted for clarity. A five-eighths inch thick base plate welds to the post and secures with four five-eighths inch diameter A325-N bolts. One-quarter inch thick full-height stiffener plates weld to each side of the beam web with three-sixteenths inch fillet welds. A separate bolted connection ties the beam web to the supporting column per detail 1C/S601.
CL POST & PL 10 HSS POST PER PLAN STEEL BEAM PER PLAN, TYP 1/4" THK FULL'HT STIFF PL EA SIDE BOLTED CONN PER 1C/S601 3/16 3/16 2" TYP NOTE: CONC'FILLED STEEL DECK NOT SHOWN FOR CLARITY CL BM & POST GAGE STD 5/8" THK BASE PL W/ (4) 5/8"Ø A325'N BOLTS X 2" TYP
