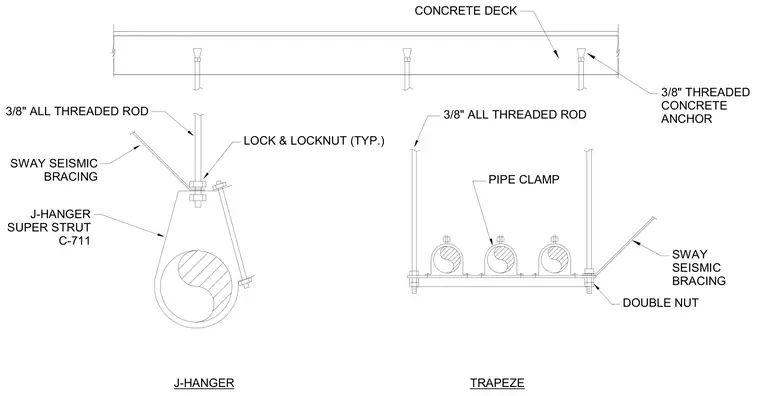

Suspended piping is anchored to an overhead concrete deck using three-eighths-inch all-threaded rods secured with threaded concrete anchors. A Super Strut C-711 J-hanger supports single piping with typical lock and locknuts, while a trapeze assembly supports multiple pipes with pipe clamps and double nuts. Both hanger configurations incorporate diagonal sway seismic bracing members attached with threaded rods.
3/8" THREADED CONCRETE ANCHOR SWAY SEISMIC BRACING DOUBLE NUT LOCK & LOCKNUT (TYP.) 3/8" ALL THREADED ROD PIPE CLAMP J-HANGER SUPER STRUT C-711 SWAY SEISMIC BRACING 3/8" ALL THREADED ROD CONCRETE DECK J-HANGER TRAPEZE
