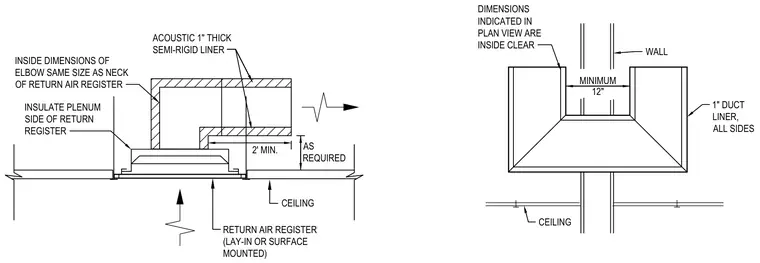

An acoustic return elbow silencer is mounted to a lay-in or surface-mounted return air register penetrating a ceiling. The inside dimensions of the elbow match the neck size of the return air register, and the plenum side of the register is insulated. The elbow features a one-inch thick acoustic semi-rigid liner on interior surfaces with a minimum two-foot dimension and a twelve-inch minimum clearance. Plan view dimensions indicate inside clear measurements between walls lined with one-inch duct liner on all sides.
CEILING (LAY-IN OR SURFACE RETURN AIR REGISTER MOUNTED) 2' MIN. SEMI-RIGID LINER ACOUSTIC 1" THICK INSULATE PLENUM SIDE OF RETURN REGISTER INSIDE DIMENSIONS OF ELBOW SAME SIZE AS NECK OF RETURN AIR REGISTER AS REQUIRED 12" MINIMUM 1" DUCT LINER, ALL SIDES DIMENSIONS INDICATED IN PLAN VIEW ARE INSIDE CLEAR WALL CEILING
