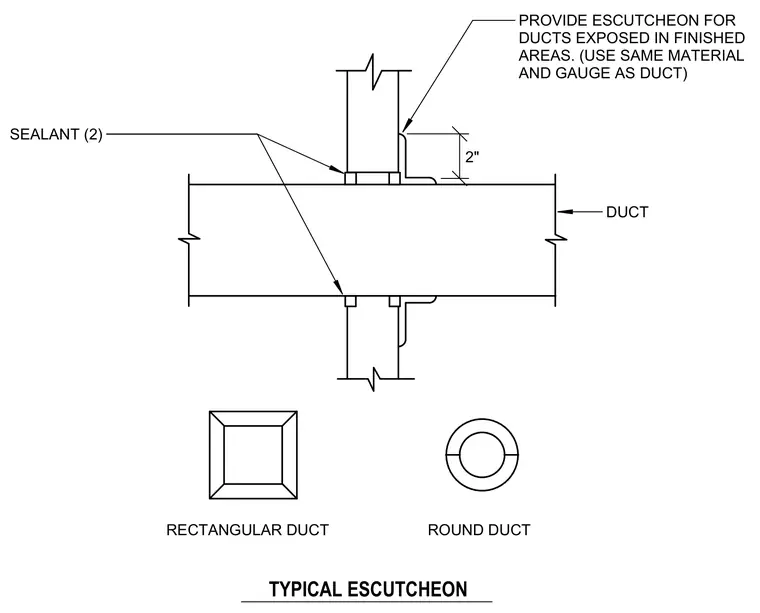

An escutcheon plate is provided for ducts exposed in finished areas, matching the material and gauge of the duct. Two beads of duct sealant are applied around the penetration. The assembly accommodates both rectangular and round duct configurations.
2" DUCT SEALANT (2) RECTANGULAR DUCT ROUND DUCT TYPICAL ESCUTCHEON PROVIDE ESCUTCHEON FOR DUCTS EXPOSED IN FINISHED AREAS. (USE SAME MATERIAL AND GAUGE AS DUCT)
