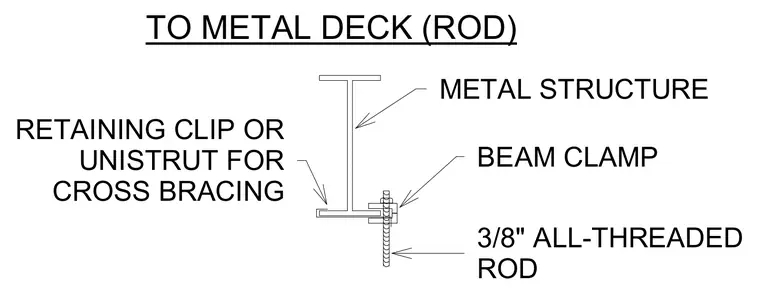

A 3/8-inch all-threaded rod suspends from an overhead metal structure using a beam clamp attached to the lower flange. A retaining clip or Unistrut channel provides attachment for cross bracing. The clamp secures mechanically to the structural steel flange to support the threaded rod assembly.
3/8" ALL-THREADED ROD METAL STRUCTURE BEAM CLAMP TO METAL DECK (ROD) RETAINING CLIP OR UNISTRUT FOR CROSS BRACING
