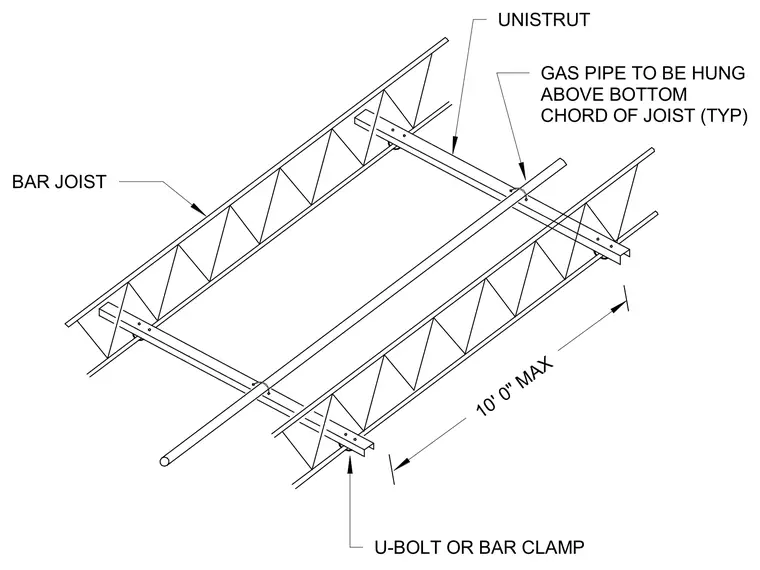

Natural gas piping is suspended using a Unistrut channel assembly positioned above the bottom chord of the supporting bar joists. The gas pipe is secured to the Unistrut with a U-bolt or bar clamp typically spaced at a maximum distance of ten feet. The Unistrut channels run perpendicular to the bar joists to support the piping run.
10' 0" MAX UNISTRUT GAS PIPE TO BE HUNG ABOVE BOTTOM CHORD OF JOIST (TYP) BAR JOIST U-BOLT OR BAR CLAMP
