Unit heater hanging locations are coordinated with pendant early suppression fast response sprinkler heads along the sprinkler system branchline. Equal spacing dimensions govern the relative positioning between the unit heater and sprinkler heads to maintain proper clearance and coverage.

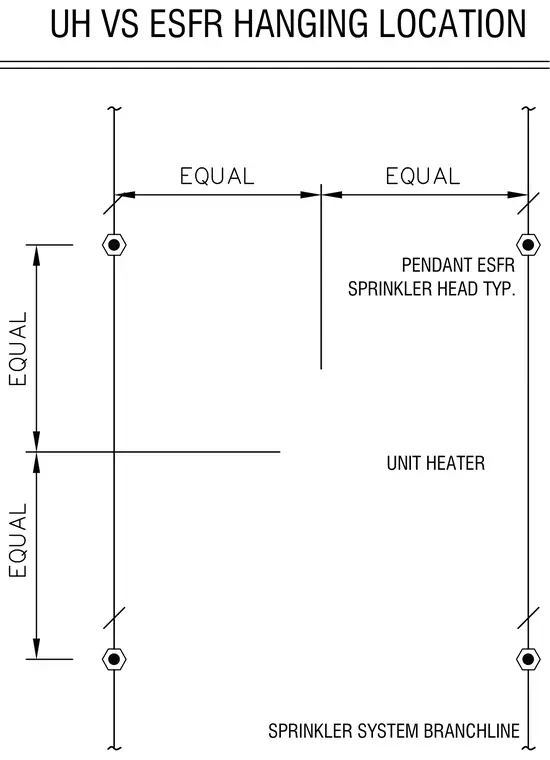

PENDANT ESFR SPRINKLER HEAD TYP. SPRINKLER SYSTEM BRANCHLINE UNIT HEATER UH VS ESFR HANGING LOCATION
