Mechanical · M-E2BZE

Boiler Piping Detail

Elements

About this detail

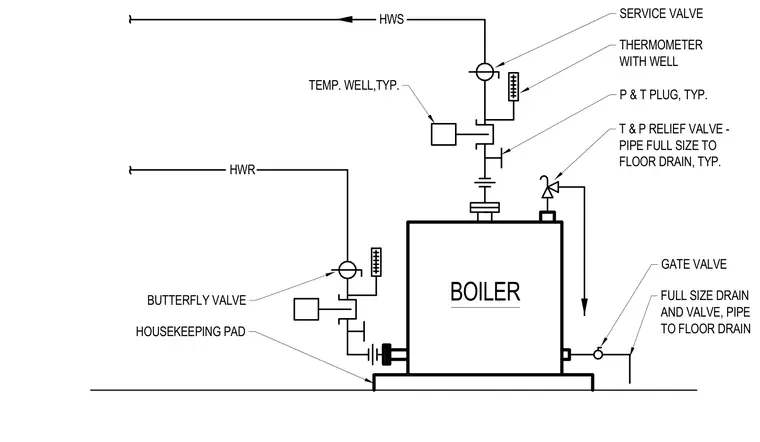

The boiler is mounted on a concrete housekeeping pad and connected to hot water supply and hot water return lines. The supply line features a service valve, a thermometer with a well, a temperature and pressure plug, and a temperature and pressure relief valve piped full size to a floor drain. The return line includes a butterfly valve, a temperature well, and a pressure and temperature plug. A full size drain valve on the boiler connects to the floor drain.
