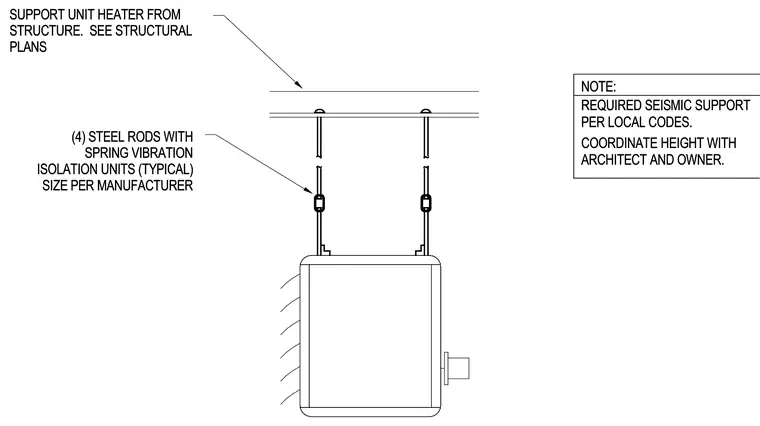

The gas unit heater is suspended from the overhead structure using four steel rods equipped with typical spring vibration isolation units sized per the manufacturer. Attachment to the building structure must coordinate with structural plans, and required seismic support must be provided per local codes. Equipment height is coordinated with the architect and owner.
~ ~ ~ ~ SUPPORT UNIT HEATER FROM STRUCTURE. SEE STRUCTURAL PLANS (4) STEEL RODS WITH SPRING VIBRATION ISOLATION UNITS (TYPICAL) SIZE PER MANUFACTURER NOTE: REQUIRED SEISMIC SUPPORT PER LOCAL CODES. COORDINATE HEIGHT WITH ARCHITECT AND OWNER. ~ ~ ~ ~ SUPPORT UNIT HEATER FROM STRUCTURE. SEE STRUCTURAL PLANS (4) STEEL RODS WITH SPRING VIBRATION ISOLATION UNITS (TYPICAL) SIZE PER MANUFACTURER NOTE: REQUIRED SEISMIC SUPPORT PER LOCAL CODES. COORDINATE HEIGHT WITH ARCHITECT AND OWNER.
