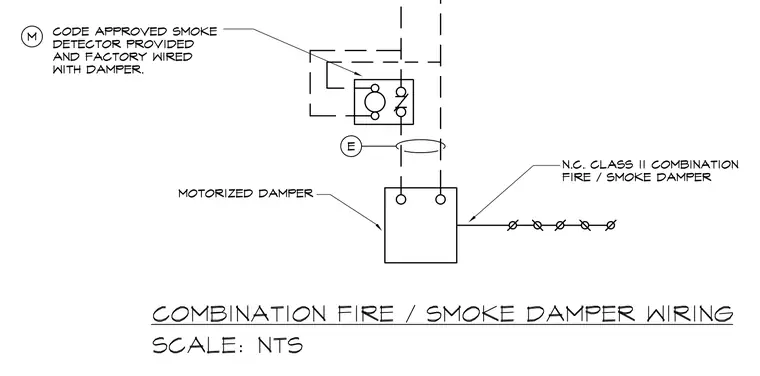

A normally closed class II combination fire and smoke damper connects to a motorized damper unit. A code approved smoke detector is provided and factory wired with the damper. Electrical connections interface the control components according to life safety requirements.
