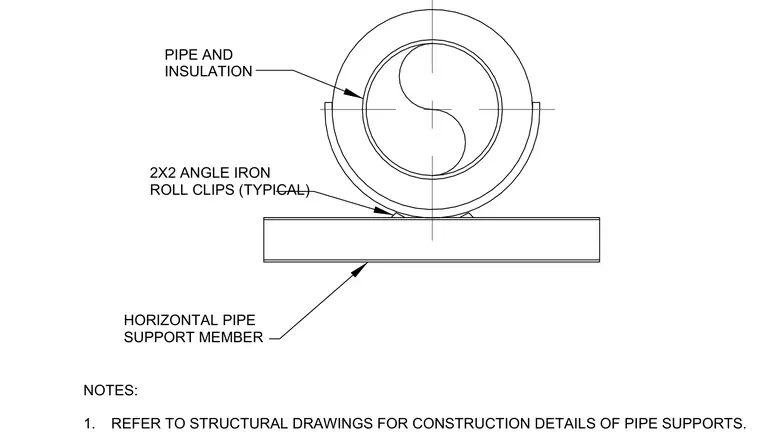

An insulated pipe rests on a horizontal pipe support member with typical two-by-two-inch angle iron roll clips. Structural drawings must be referenced for the construction details of the pipe supports.
PIPE AND INSULATION 2X2 ANGLE IRON ROLL CLIPS (TYPICAL) HORIZONTAL PIPE SUPPORT MEMBER 1. NOTES: REFER TO STRUCTURAL DRAWINGS FOR CONSTRUCTION DETAILS OF PIPE SUPPORTS.
