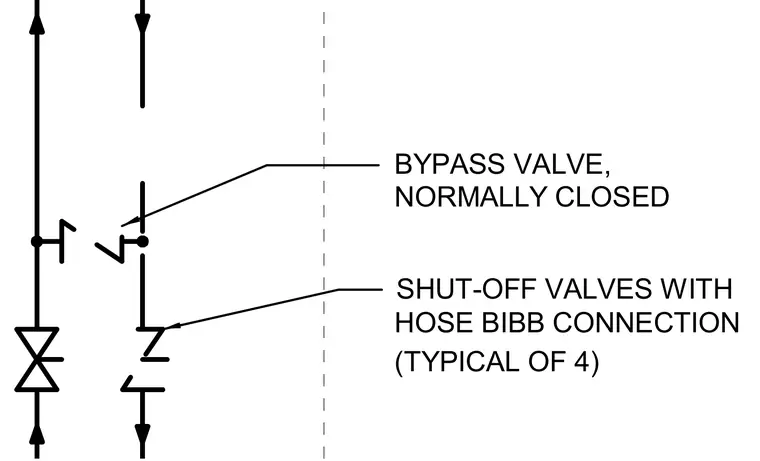

A piping assembly incorporates shut-off valves with a hose bibb connection, designated as typical of four, alongside a normally closed bypass valve. The schematic details flow direction and valve placement within the mechanical piping system.
NORMALLY CLOSED BYPASS VALVE, (TYPICAL OF 4) HOSE BIBB CONNECTION SHUT-OFF VALVES WITH
