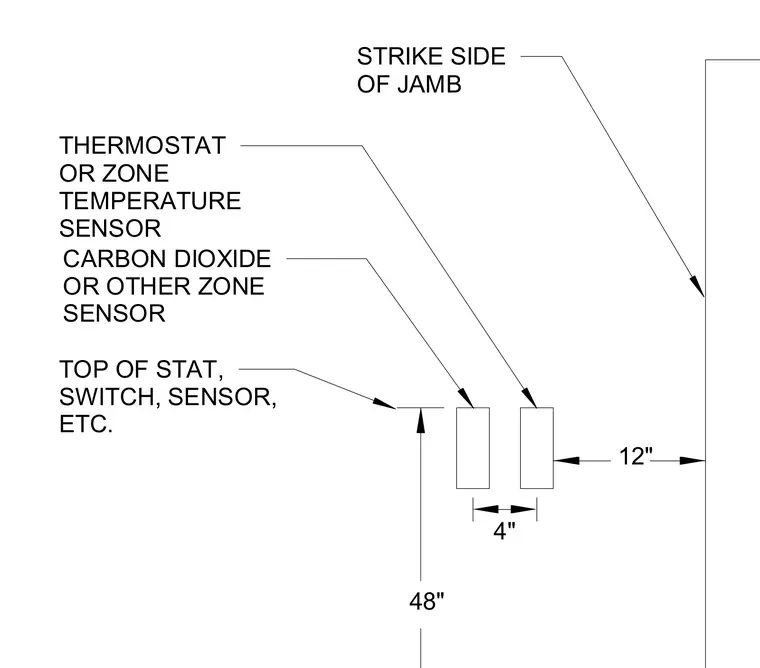

Thermostats, carbon dioxide sensors, or other zone sensors mount on the wall at a height of 48 inches from the finished floor to the top of the device. Multiple adjacent sensors or switches maintain a 4-inch spacing between devices. The nearest edge of the sensor assembly maintains a 12-inch horizontal clearance from the strike side of the door jamb.
12" 48" STRIKE SIDE OF JAMB THERMOSTAT OR ZONE TEMPERATURE SENSOR 4" CARBON DIOXIDE OR OTHER ZONE SENSOR TOP OF STAT, SWITCH, SENSOR, ETC.
