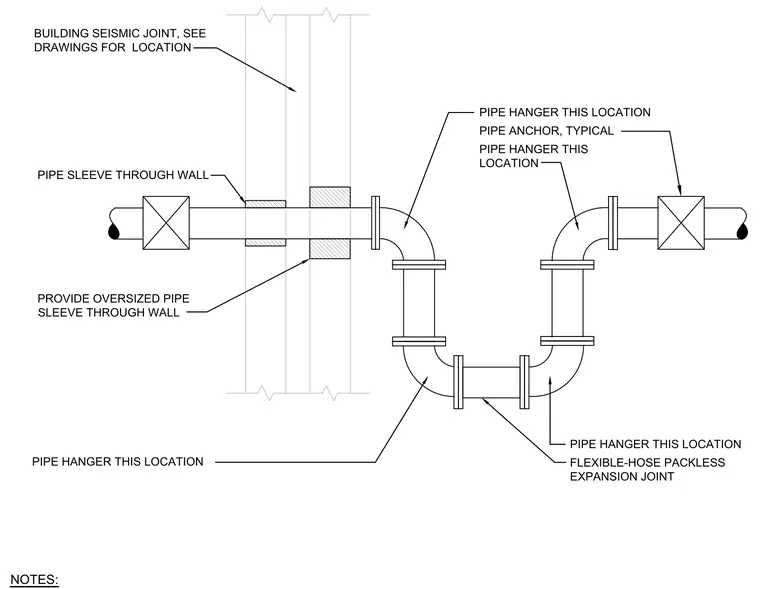

A piping run crosses a building seismic joint using an inline flexible-hose packless expansion joint configured with a vertical loop to accommodate structural movement. The pipe penetrates the wall through a standard pipe sleeve on one side and an oversized pipe sleeve on the other side at the seismic gap. Pipe hangers are positioned at multiple locations along the elbows to support the offset configuration. A typical pipe anchor is located on the straight run adjacent to the flexible connection to restrain thermal expansion and movement.
NOTES: BUILDING SEISMIC JOINT, SEE DRAWINGS FOR LOCATION PIPE ANCHOR, TYPICAL FLEXIBLE-HOSE PACKLESS EXPANSION JOINT PIPE SLEEVE THROUGH WALL PIPE HANGER THIS LOCATION PROVIDE OVERSIZED PIPE SLEEVE THROUGH WALL PIPE HANGER THIS LOCATION PIPE HANGER THIS LOCATION PIPE HANGER THIS LOCATION
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
