Mechanical · M-DQJPQ

Radiant Changeover Valve Station Detail

Materials

Elements

About this detail

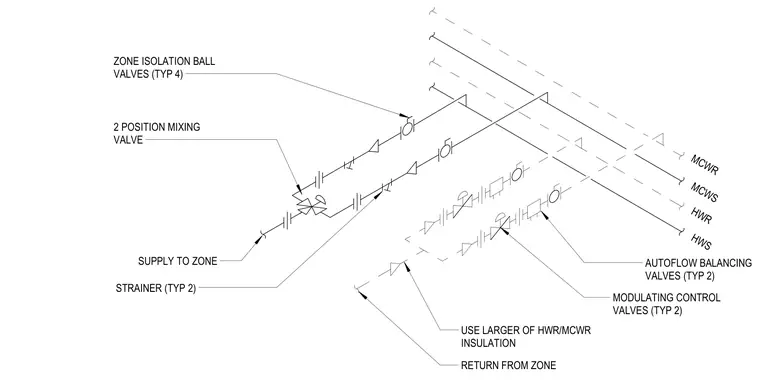

This isometric diagram outlines a radiant changeover valve station connecting main chilled water and heating water lines to a thermal zone. The configuration incorporates four zone isolation ball valves, two strainers, two position mixing valves, two modulating control valves, and two autoflow balancing valves. Main supply and return lines include medium chilled water supply, medium chilled water return, heating water supply, and heating water return connections. Pipe insulation sizing follows the larger requirement between the heating water return and medium chilled water return lines.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
