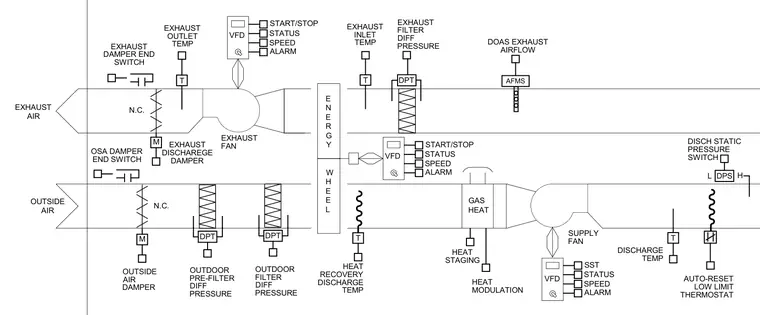

DOAS Energy Recovery Air Handling Unit Schematic

About this detail

A dedicated outdoor air system unit houses outside air and exhaust air paths through filters, dampers, an energy recovery wheel, gas heat, and supply and exhaust fans. Variable frequency drives control the fans with status, speed, and alarm points. Temperature sensors, differential pressure transducers, airflow measuring stations, and safety thermostats are positioned along the ductwork.
