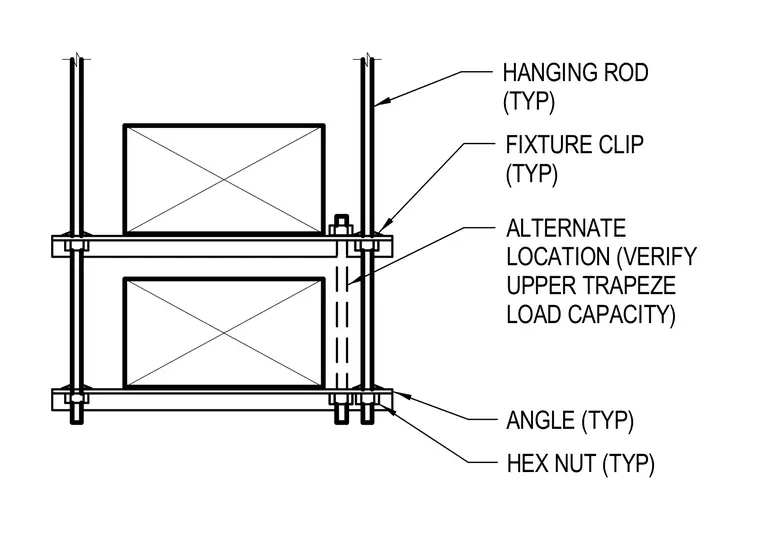

HVAC ducts are suspended using a multi-tier trapeze hanger assembly constructed from typical structural angles and hanging rods. The ducts rest on trapeze support members secured by typical fixture clips and hex nuts at each threaded rod connection. An alternate rod location is provided for secondary suspension, requiring verification of the upper trapeze load capacity. Typical hanging rods extend upward to the overhead structure to support the stacked duct arrangement.
ANGLE (TYP) HEX NUT (TYP) ALTERNATE LOCATION (VERIFY UPPER TRAPEZE LOAD CAPACITY) FIXTURE CLIP (TYP) HANGING ROD (TYP)
