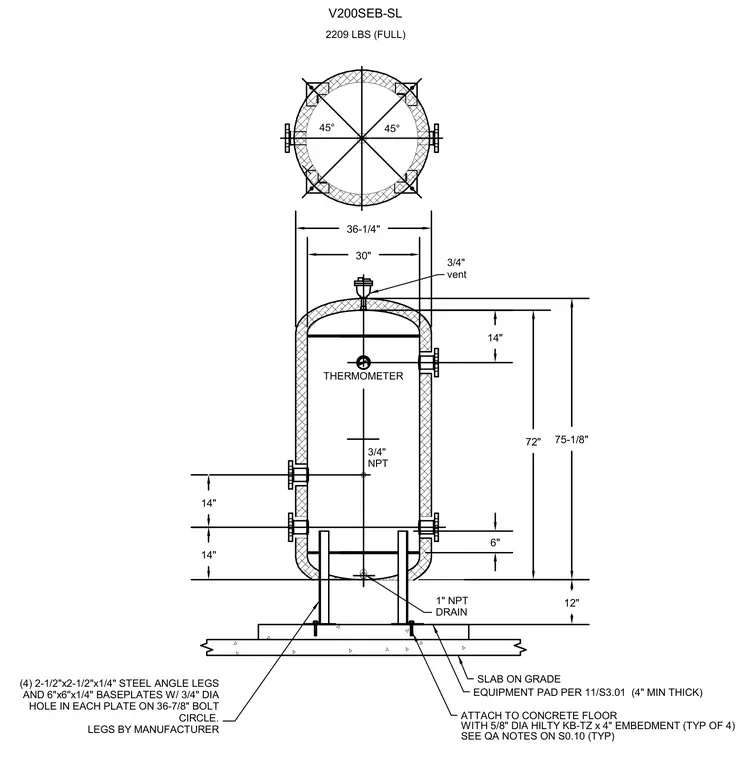

The assembly features a V200SEB-SL storage tank supported by four 2-1/2"x2-1/2"x1/4" steel angle legs with 6"x6"x1/4" baseplates welded on a 36-7/8" bolt circle. The tank includes a 1" NPT drain, a 3/4" NPT connection, a thermometer, and a 3/4" vent. The baseplates are anchored to a concrete equipment pad over a slab on grade using 5/8" diameter Hilti KB-TZ anchors with a 4" embedment typical of four. The equipment pad is four inches thick minimum and installed per structural details.
V200SEB-SL THERMOMETER 1" NPT DRAIN 45° 3/4" vent 45° 3/4" NPT (4) 2-1/2"x2-1/2"x1/4" STEEL ANGLE LEGS AND 6"x6"x1/4" BASEPLATES W/ 3/4" DIA HOLE IN EACH PLATE ON 36-7/8" BOLT CIRCLE. LEGS BY MANUFACTURER ATTACH TO CONCRETE FLOOR WITH 5/8" DIA HILTY KB-TZ x 4" EMBEDMENT (TYP OF 4) 2209 LBS (FULL) SEE QA NOTES ON S0.10 (TYP) EQUIPMENT PAD PER 11/S3.01 (4" MIN THICK) SLAB ON GRADE 36-1/4" 30" 14" 75-1/8" 72" 12" 14" 14" 6"
