An inline exhaust fan is suspended from the overhead structure using four required half-inch steel hanger rods secured through spring vibration isolators and mounting brackets furnished by the fan manufacturer. Flexible connections tie the fan inlet and discharge to rectangular ductwork sized per plans, incorporating a low leakage control damper and a backdraft damper. A separate duct support detail includes rectangular duct hung from overhead structural members using minimum one-inch straps and restrained clips, fastened with two number ten sheet metal screws or one quarter-inch bolt. Duct straps feature a minimum one-inch bend tab under the duct secured with number ten sheet metal screws at six inches on center typical, with trapeze hangers required for rectangular ducts larger than sixty inches in width.

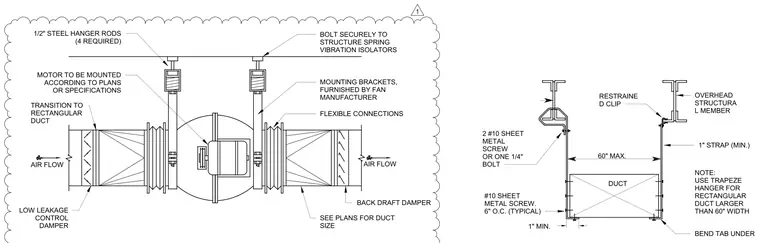

DUCT 1" STRAP (MIN.) 60" MAX. 1" MIN. BEND TAB UNDER #10 SHEET METAL SCREW. 6" O.C. (TYPICAL) OVERHEAD STRUCTURA L MEMBER RESTRAINE D CLIP NOTE: USE TRAPEZE HANGER FOR RECTANGULAR DUCT LARGER THAN 60" WIDTH 2 #10 SHEET METAL SCREW OR ONE 1/4" BOLT BOLT SECURELY TO STRUCTURE SPRING VIBRATION ISOLATORS MOUNTING BRACKETS, FURNISHED BY FAN MANUFACTURER BACK DRAFT DAMPER MOTOR TO BE MOUNTED ACCORDING TO PLANS OR SPECIFICATIONS LOW LEAKAGE CONTROL DAMPER TRANSITION TO RECTANGULAR DUCT AIR FLOW 1/2" STEEL HANGER RODS (4 REQUIRED) SEE PLANS FOR DUCT SIZE AIR FLOW FLEXIBLE CONNECTIONS 1
