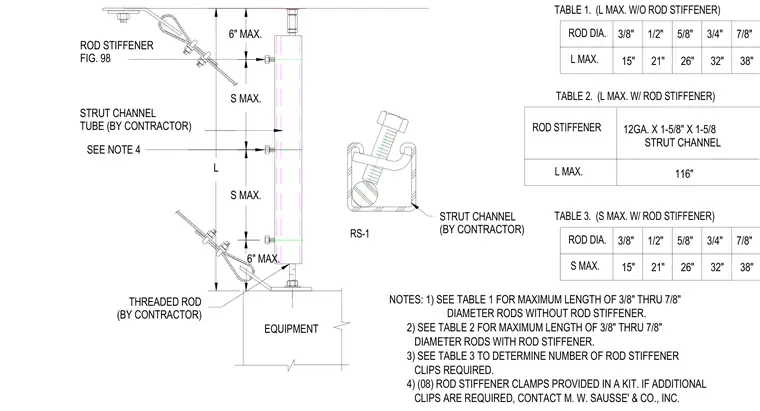

Rod stiffeners used on equipment cable bracing require specific installation measures. A threaded rod by the contractor is reinforced with a 12-gauge 1-5/8 inch by 1-5/8 inch strut channel tube attached via rod stiffener clamps provided in kits of eight. Maximum unsupported lengths and spacing parameters for rod diameters ranging from 3/8 inch to 7/8 inch are specified in accompanying tables. The assembly connects equipment to overhead support using diagonal bracing cables and clamping hardware.
STRUT CHANNEL (BY CONTRACTOR) NOTES: 1) SEE TABLE 1 FOR MAXIMUM LENGTH OF 3/8" THRU 7/8" ROD STIFFENER FIG. 98 SEE NOTE 4 THREADED ROD (BY CONTRACTOR) STRUT CHANNEL TUBE (BY CONTRACTOR) 6" MAX. EQUIPMENT S MAX. L RS-1 S MAX. 6" MAX. DIAMETER RODS WITH ROD STIFFENER. CLIPS ARE REQUIRED, CONTACT M. W. SAUSSE' & CO., INC. 4) (08) ROD STIFFENER CLAMPS PROVIDED IN A KIT. IF ADDITIONAL 3) SEE TABLE 3 TO DETERMINE NUMBER OF ROD STIFFENER CLIPS REQUIRED. 32" 3/4" 32" 12GA. X 1-5/8" X 1-5/8 STRUT CHANNEL TABLE 2. (L MAX. W/ ROD STIFFENER) TABLE 1. (L MAX. W/O ROD STIFFENER) 3/4" TABLE 3. (S MAX. W/ ROD STIFFENER) 2) SEE TABLE 2 FOR MAXIMUM LENGTH OF 3/8" THRU 7/8" 116" L MAX. ROD DIA. S MAX. DIAMETER RODS WITHOUT ROD STIFFENER. 15" 26" 21" 3/8" 5/8" 1/2" ROD DIA. L MAX. ROD STIFFENER 15" 3/8" 26" 21" 5/8" 1/2" 38" 7/8" 38" 7/8"
