Detail - Horizontal Unit Heater (Three-Way)

Materials

Elements

About this detail

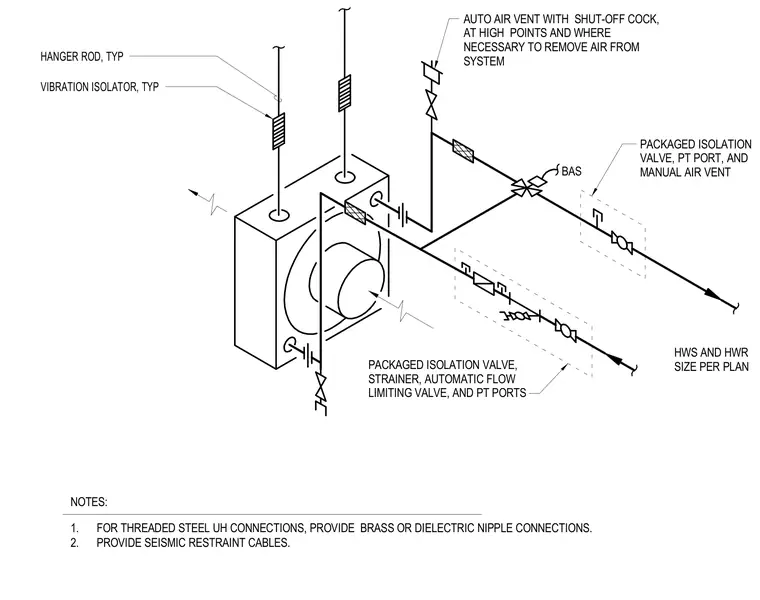

A horizontal unit heater is suspended using typical hanger rods equipped with vibration isolators and seismic restraint cables. The hot water supply and return piping features packaged isolation valves, strainers, automatic flow limiting valves, pressure-temperature test ports, and manual air vents sized per plan. Dielectric or brass nipple connections are provided for threaded steel unit heater connections, and auto air vents with shut-off cocks are installed at high points to remove air from the system.
