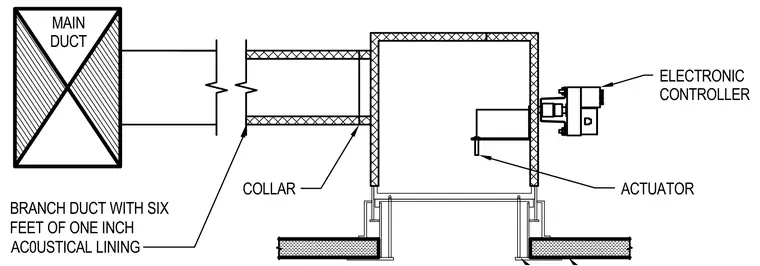

A branch duct features six feet of one-inch acoustical lining and connects to a main duct. The branch duct transitions through a collar into a lined terminal box or damper housing. An electronic controller and actuator are mounted externally with internal control linkages.
ACTUATOR ELECTRONIC CONTROLLER COLLAR BRANCH DUCT WITH SIX FEET OF ONE INCH AC0USTICAL LINING MAIN DUCT
