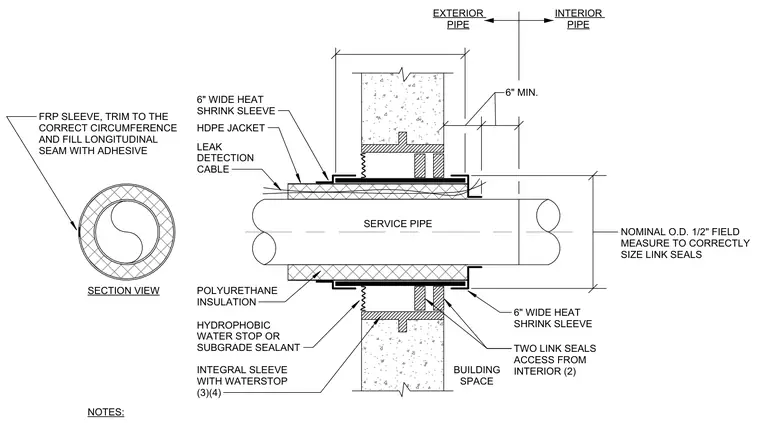

A service pipe penetrates a concrete wall through an integral sleeve equipped with a waterstop and a hydrophobic water stop or subgrade sealant. The exterior pipe features polyurethane insulation encased in an HDPE jacket, surrounded by a leak detection cable and sealed with six-inch-wide heat shrink sleeves. Two link seals, accessed from the interior building space, provide a watertight mechanical seal around the pipe. An FRP sleeve is trimmed to the correct circumference, with its longitudinal seam filled with adhesive. Field measurements of the nominal outer diameter plus one-half inch are required to correctly size the link seals.
NOTES: BUILDING SPACE SERVICE PIPE 6" WIDE HEAT SHRINK SLEEVE 6" MIN. HDPE JACKET POLYURETHANE INSULATION HYDROPHOBIC WATER STOP OR SUBGRADE SEALANT LEAK DETECTION CABLE 6" WIDE HEAT SHRINK SLEEVE NOMINAL O.D. 1/2" FIELD MEASURE TO CORRECTLY SIZE LINK SEALS FRP SLEEVE, TRIM TO THE CORRECT CIRCUMFERENCE AND FILL LONGITUDINAL SEAM WITH ADHESIVE SECTION VIEW TWO LINK SEALS ACCESS FROM INTERIOR (2) EXTERIOR PIPE INTERIOR PIPE INTEGRAL SLEEVE WITH WATERSTOP (3)(4)
