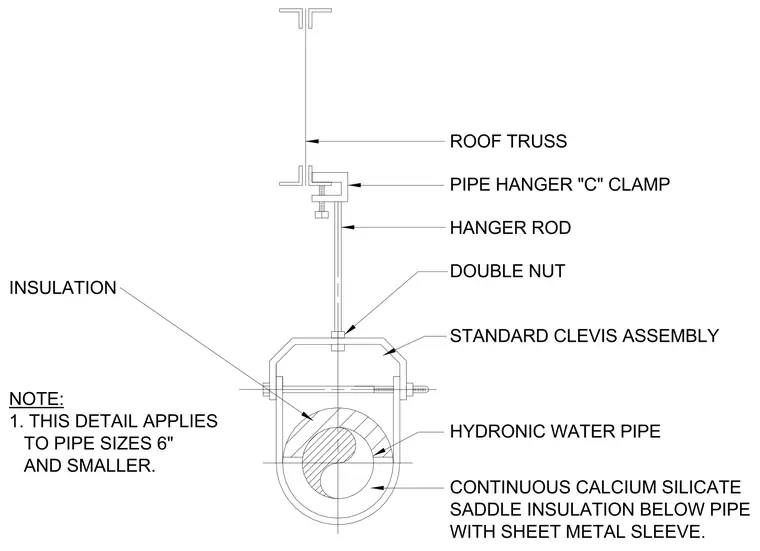

A hydronic water pipe is suspended from an overhead roof truss using a pipe hanger C-clamp attached to the structural framing. A threaded hanger rod connects the clamp to a standard clevis assembly secured with double nuts. The pipe is wrapped in continuous calcium silicate saddle insulation below the pipe with a sheet metal sleeve. This detail applies to pipe sizes six inches and smaller.
STANDARD CLEVIS ASSEMBLY HANGER ROD INSULATION CONTINUOUS CALCIUM SILICATE HYDRONIC WATER PIPE DOUBLE NUT 1. THIS DETAIL APPLIES TO PIPE SIZES 6" NOTE: AND SMALLER. PIPE HANGER "C" CLAMP ROOF TRUSS SADDLE INSULATION BELOW PIPE WITH SHEET METAL SLEEVE.
