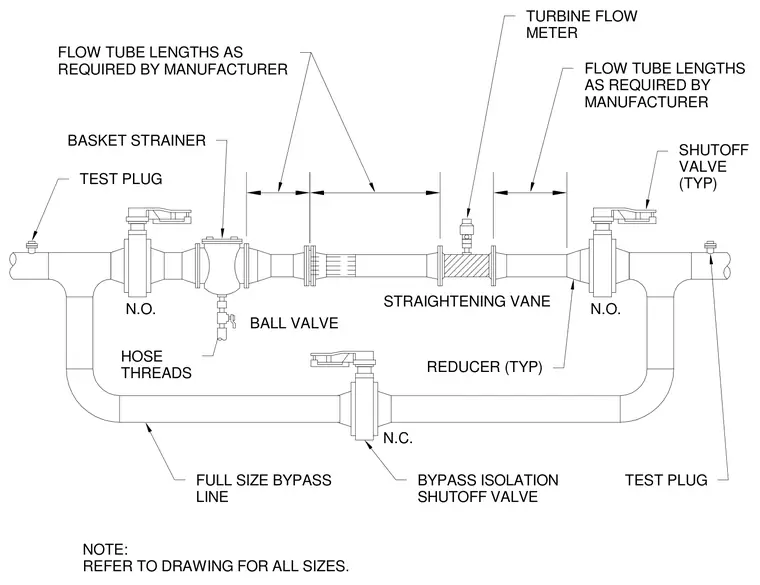

This mechanical piping assembly integrates a turbine flow meter and a straightening vane flanked by specified flow tube lengths as required by the manufacturer. The main line incorporates a basket strainer upstream and test plugs at both ends for system diagnostics. Shutoff valves and reducers are positioned across the meter run, with normally open and normally closed valves controlling flow paths. A full-size bypass line loops around the meter assembly, equipped with a normally closed bypass isolation shutoff valve and hose threads.
N.C. N.O. N.O. STRAIGHTENING VANE BALL VALVE NOTE: REFER TO DRAWING FOR ALL SIZES. TURBINE FLOW METER SHUTOFF VALVE (TYP) FLOW TUBE LENGTHS AS REQUIRED BY MANUFACTURER BASKET STRAINER TEST PLUG HOSE THREADS REDUCER (TYP) FULL SIZE BYPASS LINE BYPASS ISOLATION SHUTOFF VALVE TEST PLUG FLOW TUBE LENGTHS AS REQUIRED BY MANUFACTURER
