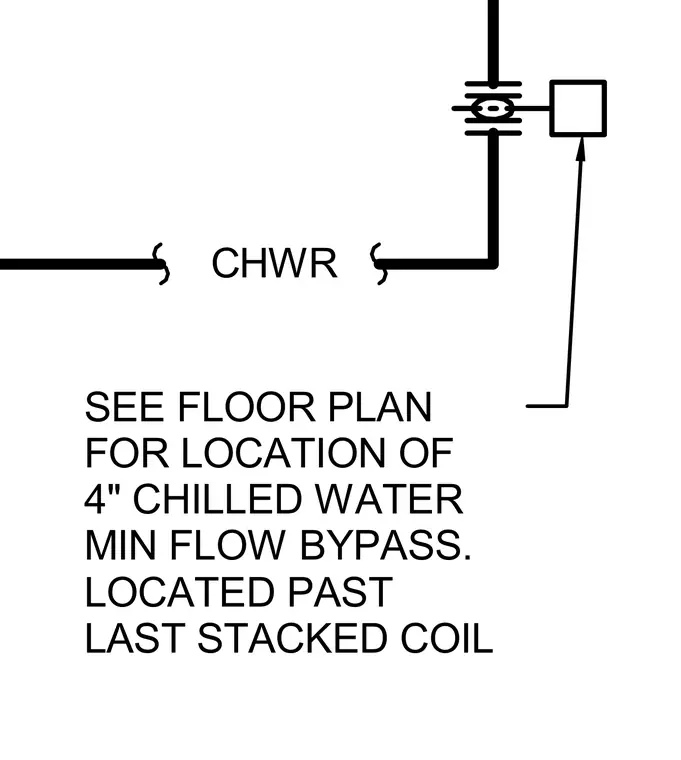

A four-inch chilled water minimum flow bypass is installed past the last stacked chilled water return coil. The piping layout is referenced to the floor plan for exact location and routing.
SEE FLOOR PLAN FOR LOCATION OF 4" CHILLED WATER MIN FLOW BYPASS. LOCATED PAST LAST STACKED COIL CHWR
