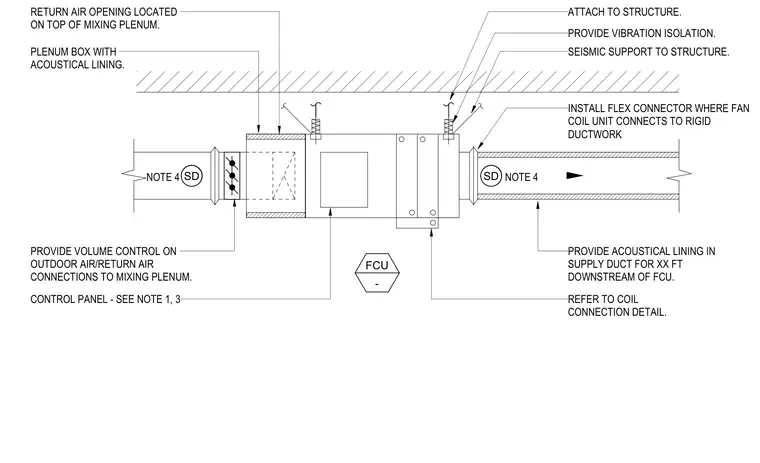

A fan coil unit is suspended from the overhead structure using vibration isolation hangers and seismic supports attached directly to the structure. A mixing plenum box featuring internal acoustical lining connects to a top return air opening and includes volume control dampers on outdoor and return air connections. A flexible connector is installed where the fan coil unit connects to the rigid ductwork. The supply duct features acoustical lining downstream of the unit, and the control panel is installed per project notes.
NOTE 4 SD FCU - REFER TO COIL CONNECTION DETAIL. PROVIDE VOLUME CONTROL ON OUTDOOR AIR/RETURN AIR CONNECTIONS TO MIXING PLENUM. PLENUM BOX WITH ACOUSTICAL LINING. INSTALL FLEX CONNECTOR WHERE FAN COIL UNIT CONNECTS TO RIGID DUCTWORK NOTE 4 SD CONTROL PANEL - SEE NOTE 1, 3 RETURN AIR OPENING LOCATED ON TOP OF MIXING PLENUM. PROVIDE ACOUSTICAL LINING IN SUPPLY DUCT FOR XX FT DOWNSTREAM OF FCU. PROVIDE VIBRATION ISOLATION. ATTACH TO STRUCTURE. SEISMIC SUPPORT TO STRUCTURE.
