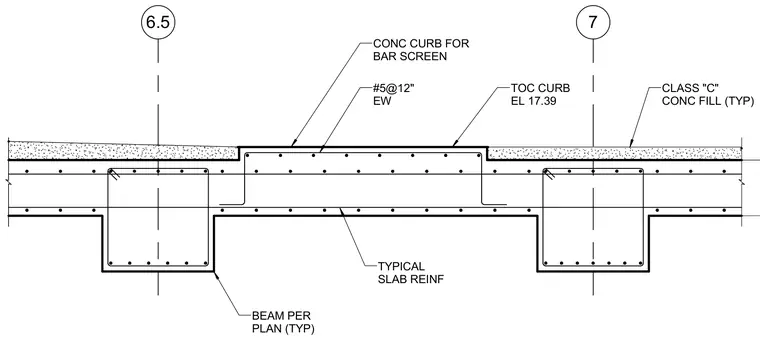

A concrete curb for a bar screen is formed over a reinforced concrete slab, with the top of curb set to elevation 17.39. The slab is reinforced with number 5 reinforcing bars at twelve inches spacing each way, supported by concrete beams sized per plan. Class C concrete fill is applied typically across the assembly.
7 6.5 BEAM PER PLAN (TYP) TYPICAL SLAB REINF CLASS "C" CONC FILL (TYP) CONC CURB FOR BAR SCREEN TOC CURB EL 17.39 #5@12" EW
