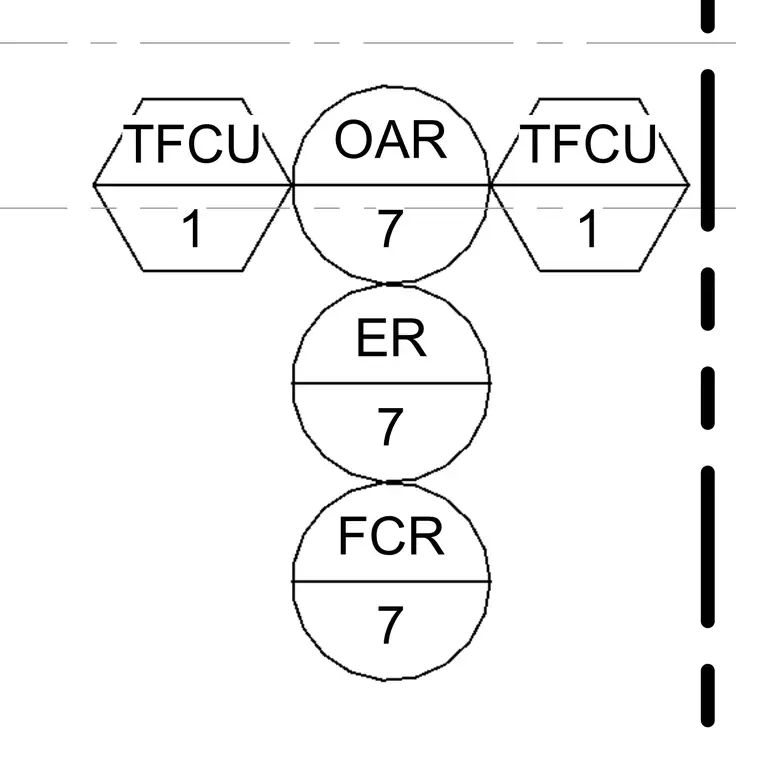

This diagram displays connected mechanical equipment identification bubbles linking tag designations for a fan coil unit, outdoor air unit, and equipment room references. The callouts show TFCU tag 1, OAR tag 7, ER tag 7, and FCR tag 7 aligned vertically and horizontally in a schematic relationship. These reference tags coordinate mechanical equipment scheduling and spatial location across drawing sheets.
