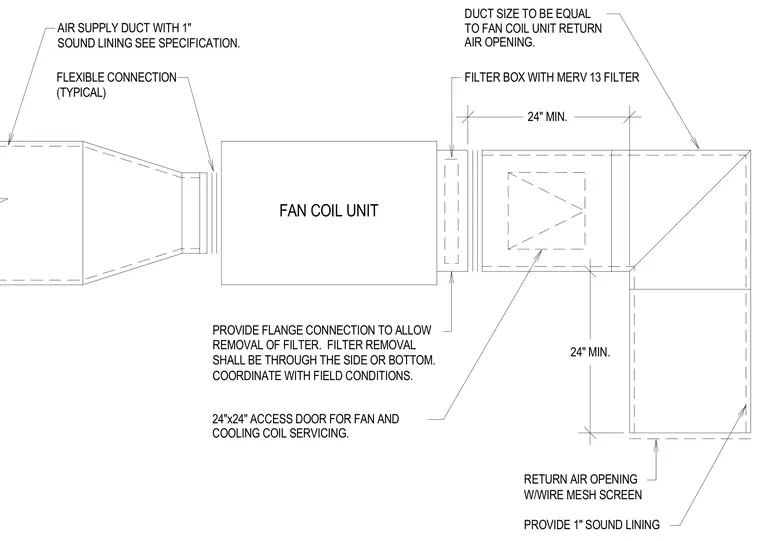

An air supply duct connects to the fan coil unit using a typical flexible connection and incorporates a one-inch sound lining per specifications. A return duct sized equal to the fan coil unit return opening links to a filter box housing a MERV 13 filter with a minimum twenty-four-inch air opening. The filter box requires a flange connection to allow filter removal through the side or bottom, coordinated with field conditions. A twenty-four by twenty-four-inch access door provides access for fan and cooling coil servicing. The return air opening is equipped with a wire mesh screen and one-inch sound lining.
FAN COIL UNIT COORDINATE WITH FIELD CONDITIONS. SHALL BE THROUGH THE SIDE OR BOTTOM. REMOVAL OF FILTER. FILTER REMOVAL 24"x24" ACCESS DOOR FOR FAN AND PROVIDE FLANGE CONNECTION TO ALLOW COOLING COIL SERVICING. FLEXIBLE CONNECTION (TYPICAL) SOUND LINING SEE SPECIFICATION. AIR SUPPLY DUCT WITH 1" RETURN AIR OPENING W/WIRE MESH SCREEN PROVIDE 1" SOUND LINING 24" MIN. FILTER BOX WITH MERV 13 FILTER 24" MIN. AIR OPENING. TO FAN COIL UNIT RETURN DUCT SIZE TO BE EQUAL
