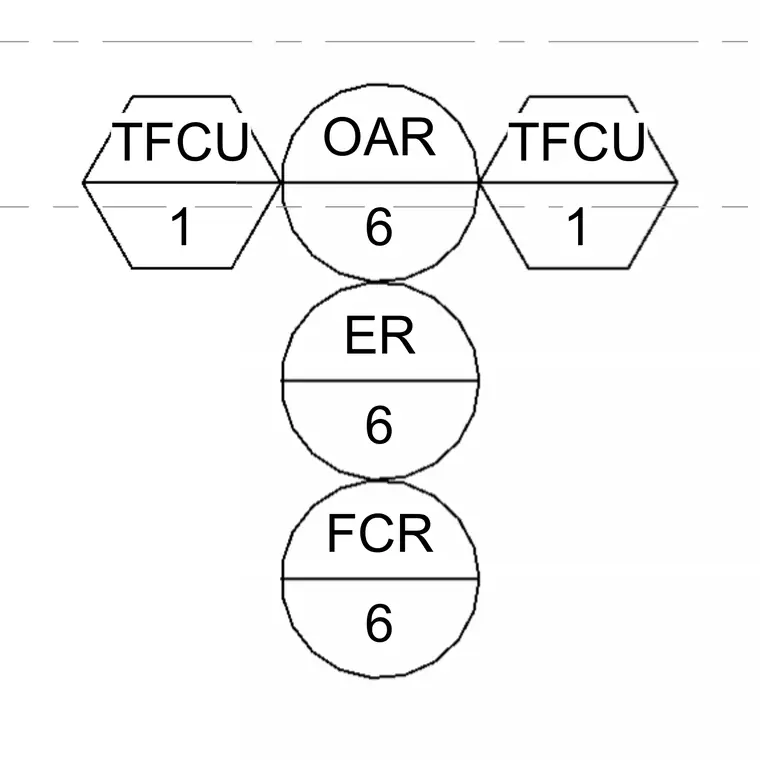

The diagram indicates equipment designations and associations for mechanical systems utilizing terminal fan coil units, outdoor air units, exhaust risers, and fan coil risers. Tag designations link related units and risers within the mechanical distribution layout.
