Mechanical · M-D7H9Q

A Minimum Of 10'-0" From Outside

Elements

About this detail

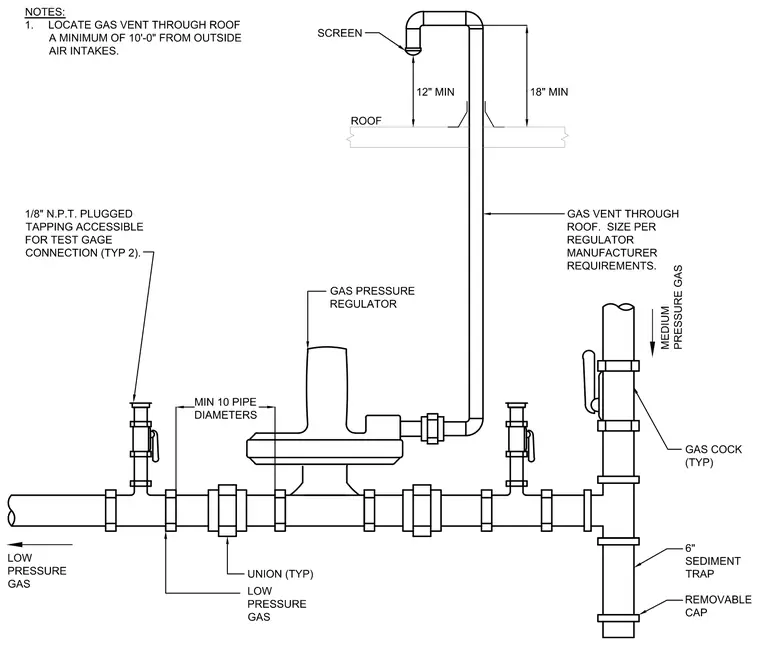

This assembly connects a medium pressure gas supply line through a gas cock to a gas pressure regulator, stepping down to a low pressure gas distribution line. The system incorporates a sediment trap with a removable cap extending six inches below the tee, and multiple pipe unions for maintenance access. A gas pressure regulator is installed with a minimum of ten pipe diameters clearance, including two typical 1/8-inch NPT plugged tappings accessible for test gauge connections. A gas vent extends through the roof, terminating with a protective screen, with minimum clearances of 12 inches above the roof and 18 inches total vertical extension, located a minimum of 10 feet from outside air intakes per the project note. The vent pipe is sized according to the regulator manufacturer requirements.
