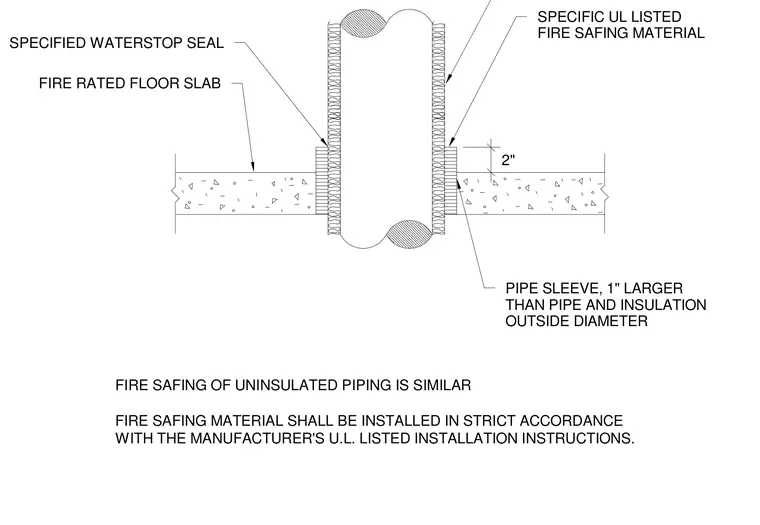

A pipe penetrates a fire-rated concrete floor slab through a pipe sleeve sized one inch larger than the pipe and insulation outside diameter. A specified waterstop seal is set within the slab opening around the penetration. Specific UL-listed fire safing material fills the annular space with a two-inch depth. Uninsulated piping follows a similar fire safing installation in strict accordance with the manufacturer's UL-listed installation instructions.
FIRE SAFING OF UNINSULATED PIPING IS SIMILAR FIRE SAFING MATERIAL SHALL BE INSTALLED IN STRICT ACCORDANCE WITH THE MANUFACTURER'S U.L. LISTED INSTALLATION INSTRUCTIONS. 2" SPECIFIC UL LISTED FIRE SAFING MATERIAL SPECIFIED WATERSTOP SEAL FIRE RATED FLOOR SLAB PIPE SLEEVE, 1" LARGER THAN PIPE AND INSULATION OUTSIDE DIAMETER
