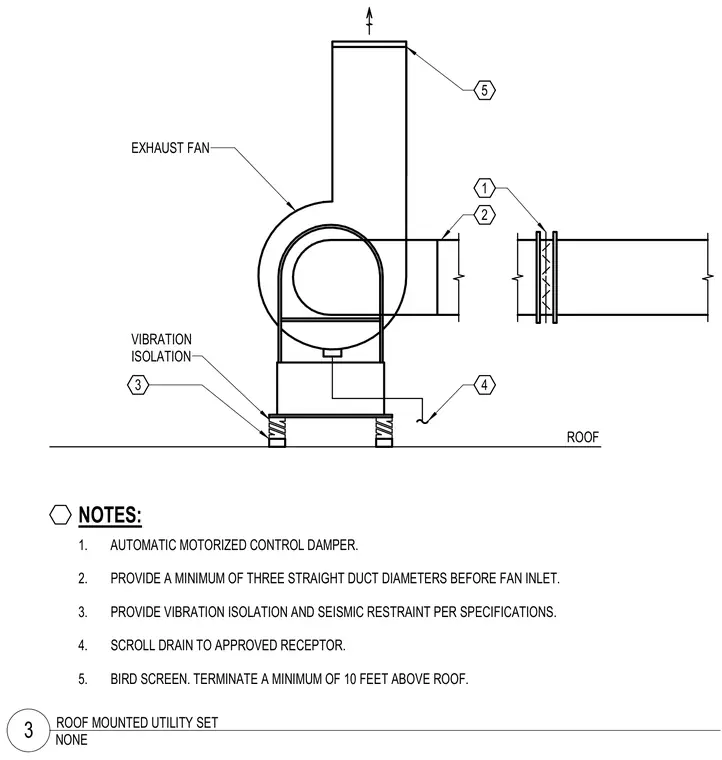

A roof-mounted utility set exhaust fan connects to an intake duct featuring an automatic motorized control damper and a minimum of three straight duct diameters before the fan inlet. The unit is supported on the roof with vibration isolation and seismic restraints per specifications. A scroll drain extends from the housing to an approved receptor. The exhaust discharge terminates vertically with a bird screen a minimum of ten feet above the roof surface.
1. AUTOMATIC MOTORIZED CONTROL DAMPER. 2. PROVIDE A MINIMUM OF THREE STRAIGHT DUCT DIAMETERS BEFORE FAN INLET. 3. PROVIDE VIBRATION ISOLATION AND SEISMIC RESTRAINT PER SPECIFICATIONS. 4. SCROLL DRAIN TO APPROVED RECEPTOR. 5. BIRD SCREEN. TERMINATE A MINIMUM OF 10 FEET ABOVE ROOF. NOTES: ROOF EXHAUST FAN 3 2 4 VIBRATION ISOLATION 1 5 NONE 3 ROOF MOUNTED UTILITY SET
