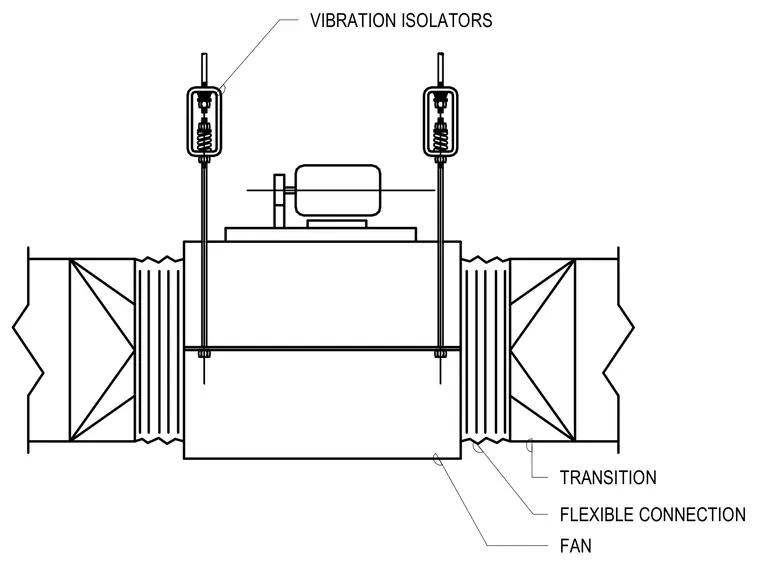

An inline fan is suspended from overhead structure using spring-type vibration isolators and threaded hanger rods. Flexible duct connections are attached to both the inlet and discharge sides of the fan to isolate mechanical vibration from the connected ductwork.
