Mechanical · M-D4DM5

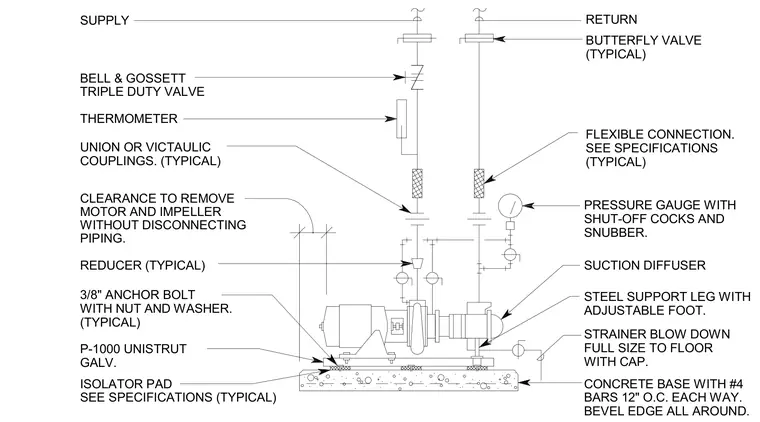

Pump Piping Connections and Mounting Detail

Materials

Concrete Steel

Elements

Floors / Slabs Anchors / Embeds Connections / Plates

Connections

Base Plate / Anchorage Bolted Connection

About this detail

A base-mounted pump rests on a concrete base reinforced with number four reinforcing bars spaced twelve inches on center each way with a bevel edge all around. The pump unit sits on isolator pads and galvanized P-1000 Unistrut framing secured by three-eighth-inch anchor bolts with nuts and washers. Steel support legs with adjustable feet support the suction diffuser, which includes a strainer blow-down extending full size to the floor with a cap. The suction and return piping incorporate reducers, union or Victaulic couplings, flexible connections, pressure gauges with shut-off cocks and snubbers, thermometers, Bell and Gossett triple-duty valves, and butterfly valves. The piping layout maintains adequate clearance to remove the motor and impeller without disconnecting piping.
