Mechanical · M-D43TD

Fan Coil (Fcu) Detail

Elements

About this detail

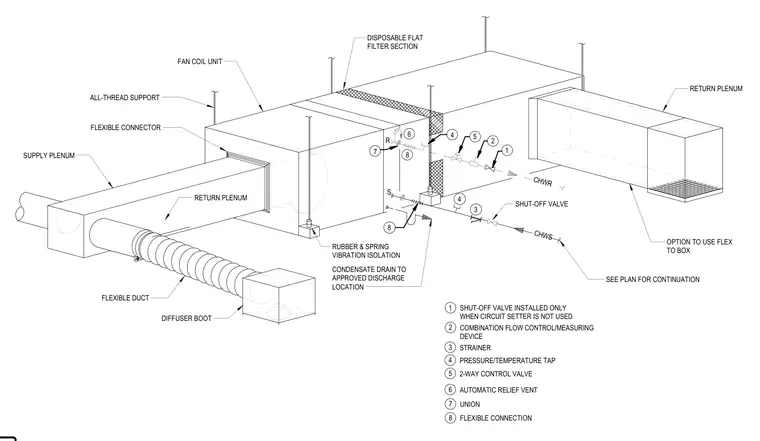

An isometric diagram of a fan coil unit installation with associated chilled water supply and return piping, ductwork plenums, and structural support. The suspended unit is hung using all-thread rods and mounted on rubber and spring vibration isolators. The chilled water piping loop includes shut-off valves, a combination flow control and measuring device, a strainer, pressure and temperature taps, a two-way control valve, an automatic relief vent, unions, and flexible connections. Supply and return ductwork connect to the unit via flexible connectors, with options for flexible duct runs to diffuser boots. A disposable flat filter section filters intake air, and a condensate drain routes moisture from the unit to an approved discharge location.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
