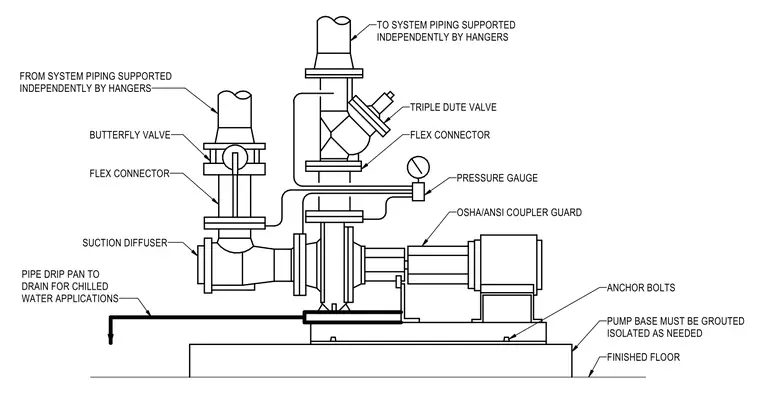

The centrifugal pump is mounted on a base that must be grouted and isolated as needed, secured to the finished floor via anchor bolts. The suction side includes a suction diffuser and a butterfly valve, while the discharge side features a triple duty valve, with both sides utilizing flexible connectors to isolate vibration. System piping is supported independently by hangers to prevent loading the pump. A pressure gauge is installed on the discharge line, and an Occupational Safety and Health Administration/American National Standards Institute compliant coupler guard protects the drive shaft. A drip pan is provided for chilled water applications and must be piped to a drain.
