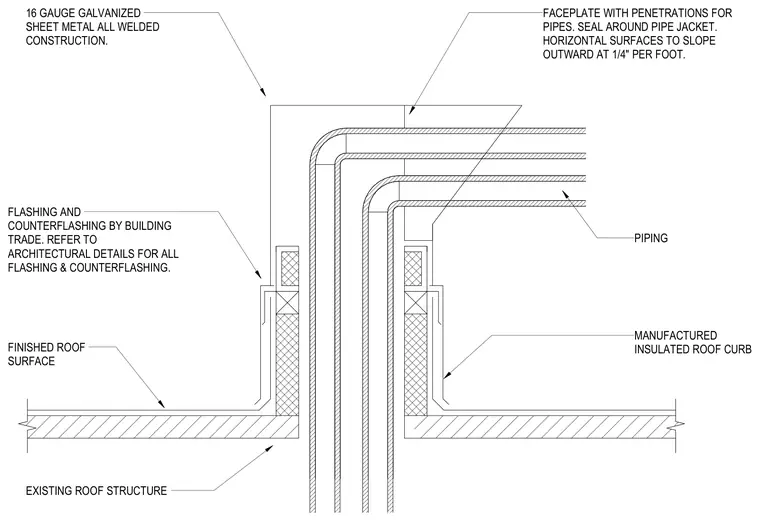

An existing roof structure supports a manufactured insulated roof curb beneath finished roof surface flashing and counterflashing installed by the building trade. A sixteen-gauge galvanized sheet metal assembly with all-welded construction covers the penetration. A faceplate with penetrations for pipes seals around the pipe jackets, with horizontal surfaces sloped outward at one-quarter inch per foot.
EXISTING ROOF STRUCTURE 16 GAUGE GALVANIZED SHEET METAL ALL WELDED CONSTRUCTION. PIPING FACEPLATE WITH PENETRATIONS FOR PIPES. SEAL AROUND PIPE JACKET. HORIZONTAL SURFACES TO SLOPE OUTWARD AT 1/4" PER FOOT. FINISHED ROOF SURFACE FLASHING AND COUNTERFLASHING BY BUILDING TRADE. REFER TO ARCHITECTURAL DETAILS FOR ALL FLASHING & COUNTERFLASHING. MANUFACTURED INSULATED ROOF CURB
