Mechanical · M-D3E5R

HVAC Piping Connections for Dual Coils

Elements

About this detail

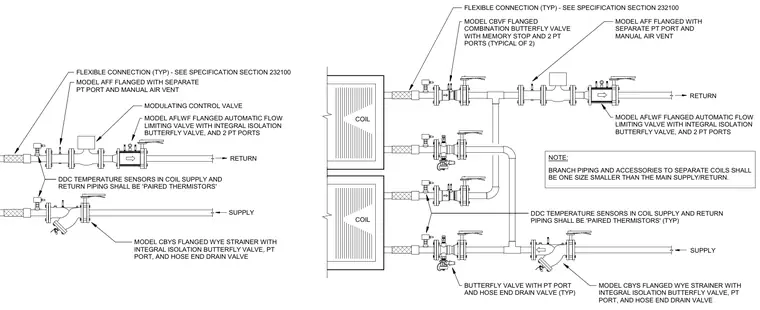

Flexible connections tie into the supply and return lines for each coil as specified in section 232100. Flanged combination butterfly valves with memory stop and pressure-temperature ports regulate flow alongside modulating control valves and automatic flow-limiting valves with integral isolation butterfly valves. Flanged wye strainers incorporate integral isolation butterfly valves, pressure-temperature ports, and hose end drain valves. Paired thermistors serve as direct digital control temperature sensors within the supply and return piping.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
