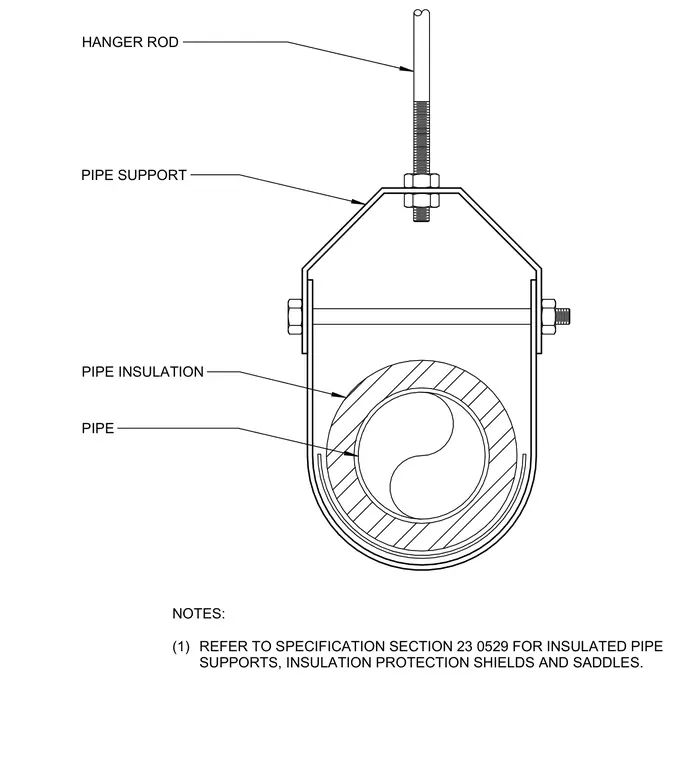

An insulated pipe is suspended from above by a threaded hanger rod secured to a clevis pipe support. The clevis hanger cradles the insulated pipe assembly. Specification notes direct the user to refer to section 23 0529 for insulated pipe supports, insulation protection shields, and saddles.
HANGER ROD PIPE SUPPORT PIPE INSULATION PIPE NOTES: (1) REFER TO SPECIFICATION SECTION 23 0529 FOR INSULATED PIPE SUPPORTS, INSULATION PROTECTION SHIELDS AND SADDLES.
