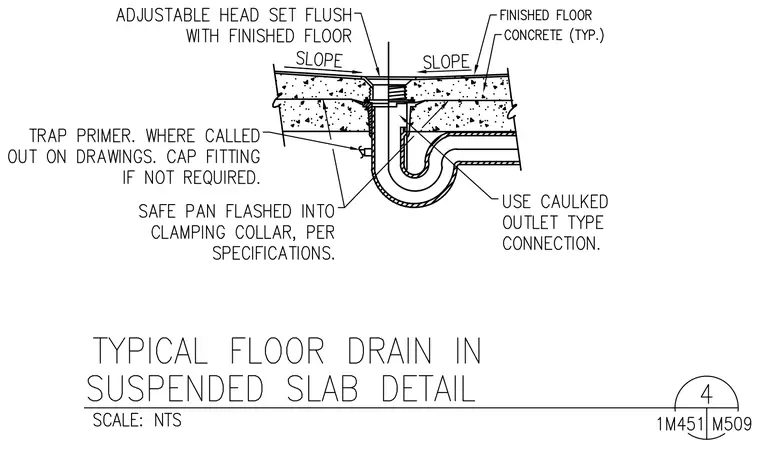

A floor drain installation within a suspended concrete floor slab features an adjustable head set flush with the finished floor surface. The concrete slab slopes toward the drain assembly, which incorporates a safe pan flashed into a clamping collar per project specifications. A trap primer connection is provided where called out on the drawings, with the fitting capped if not required. The waste piping utilizes a caulked outlet type connection at the P-trap beneath the slab.
