Mechanical ductwork is suspended from overhead structural joists using a trapeze assembly constructed from one-and-a-quarter by one-and-a-quarter by three-sixteenth-inch angle iron supports. Half-inch threaded rods drop down from the structural joists and secure the lower trapeze angle supporting the duct. The rods are fastened with half-inch bolts and nuts accompanied by two-inch half-inch washers. Nuts and washers are installed on both sides of the angle typically at connection points.

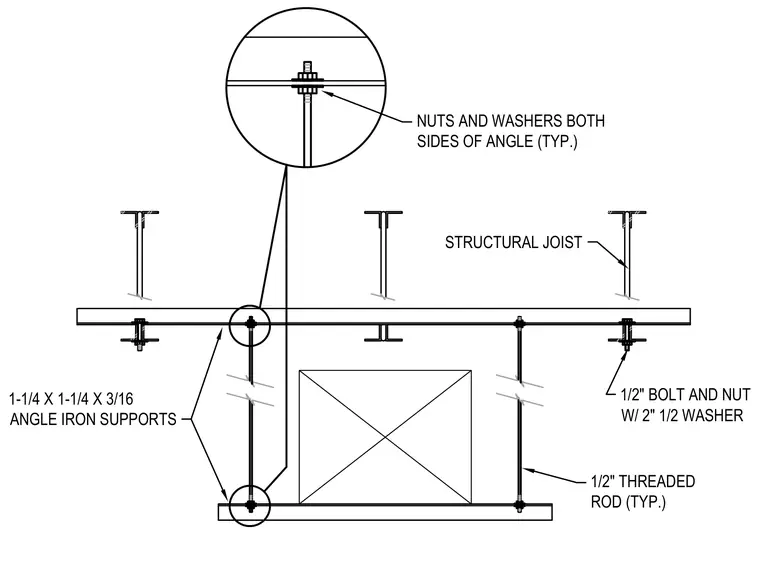

1-1/4 X 1-1/4 X 3/16 ANGLE IRON SUPPORTS 1/2" THREADED ROD (TYP.) 1/2" BOLT AND NUT W/ 2" 1/2 WASHER STRUCTURAL JOIST NUTS AND WASHERS BOTH SIDES OF ANGLE (TYP.)
