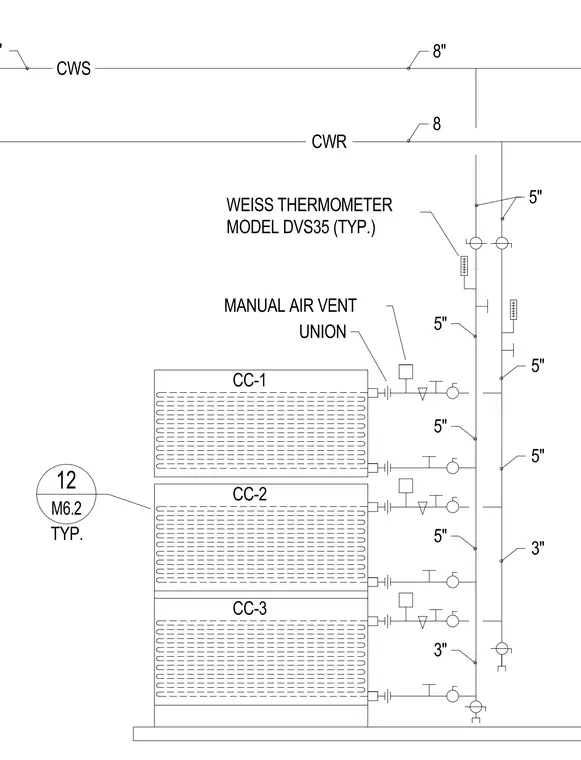

Chilled water supply and return lines connect to cooling coils CC-1, CC-2, and CC-3 with eight-inch mains reducing to five-inch and three-inch branches. Each coil branch includes a union and a Weiss Thermometer Model DVS35 typically installed for temperature monitoring. A manual air vent is positioned on the piping above each coil connection. Pipe sizes and callouts are coordinated with detail 12 on sheet M6.2.
CWS CWR CC-2 CC-1 WEISS THERMOMETER MODEL DVS35 (TYP.) 8 8" 8" 5" UNION TYP. 12 M6.2 MANUAL AIR VENT CC-3 5" 5" 3" 5" 5" 3" 5"
