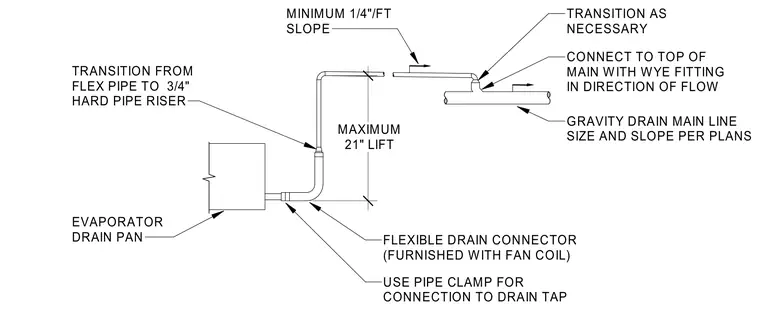

The flexible drain connector furnished with the fan coil connects to the evaporator drain pan using a pipe clamp for the connection to the drain tap. A transition converts the flexible pipe to a three-quarter inch hard pipe riser with a maximum twenty-one inch lift. The horizontal run maintains a minimum quarter inch per foot slope and transitions as necessary before connecting to the top of the main with a wye fitting in the direction of flow. The gravity drain main line is sized and sloped per plans.
MAXIMUM 21" LIFT TRANSITION FROM FLEX PIPE TO 3/4" HARD PIPE RISER EVAPORATOR DRAIN PAN MINIMUM 1/4"/FT SLOPE TRANSITION AS NECESSARY CONNECT TO TOP OF MAIN WITH WYE FITTING IN DIRECTION OF FLOW GRAVITY DRAIN MAIN LINE SIZE AND SLOPE PER PLANS FLEXIBLE DRAIN CONNECTOR (FURNISHED WITH FAN COIL) USE PIPE CLAMP FOR CONNECTION TO DRAIN TAP
