A structural support frame for mechanical ducts fabricated from tube steel vertical posts and angle iron or sheet metal strap cross bracing. The base plate of each tube steel column is anchored directly to a sleeper and sealed watertight, with the sleeper and roofing supplied by others. Angle iron supports carry the duct work, and the frame is attached to the primary building structure as needed.

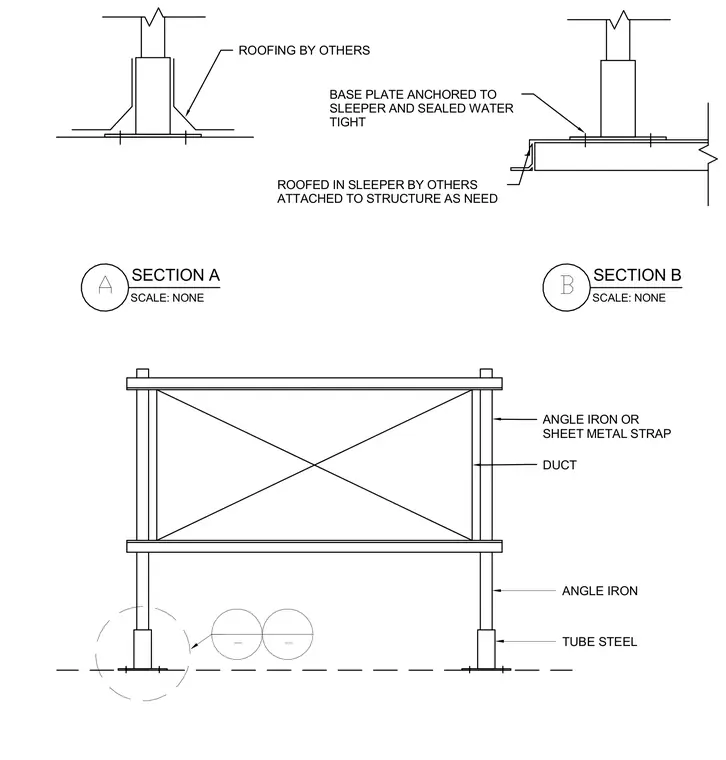

TUBE STEEL ANGLE IRON BASE PLATE ANCHORED TO SLEEPER AND SEALED WATER TIGHT ROOFED IN SLEEPER BY OTHERS ATTACHED TO STRUCTURE AS NEED ROOFING BY OTHERS ANGLE IRON OR SHEET METAL STRAP DUCT - - SECTION B SECTION A B SCALE: NONE A SCALE: NONE
